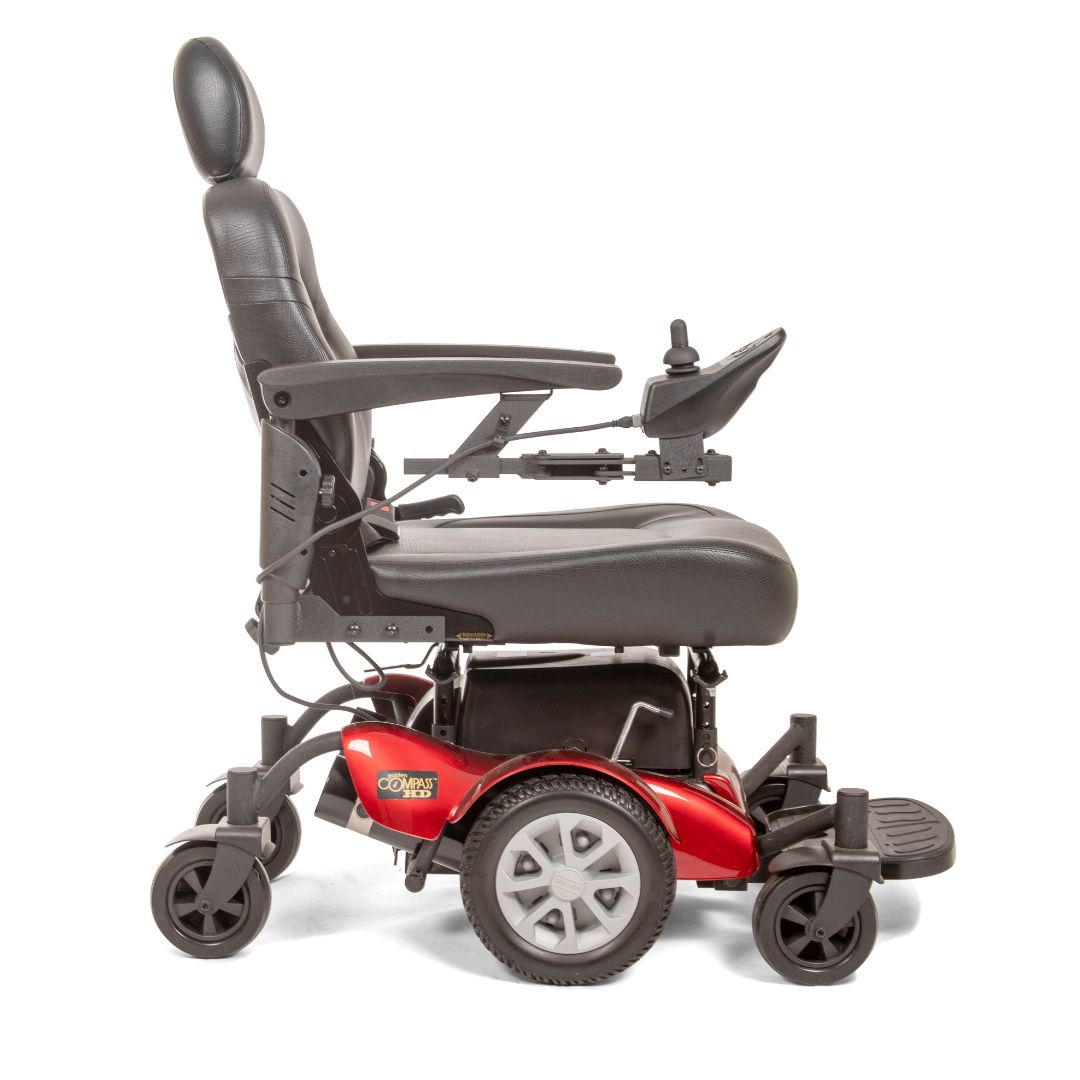

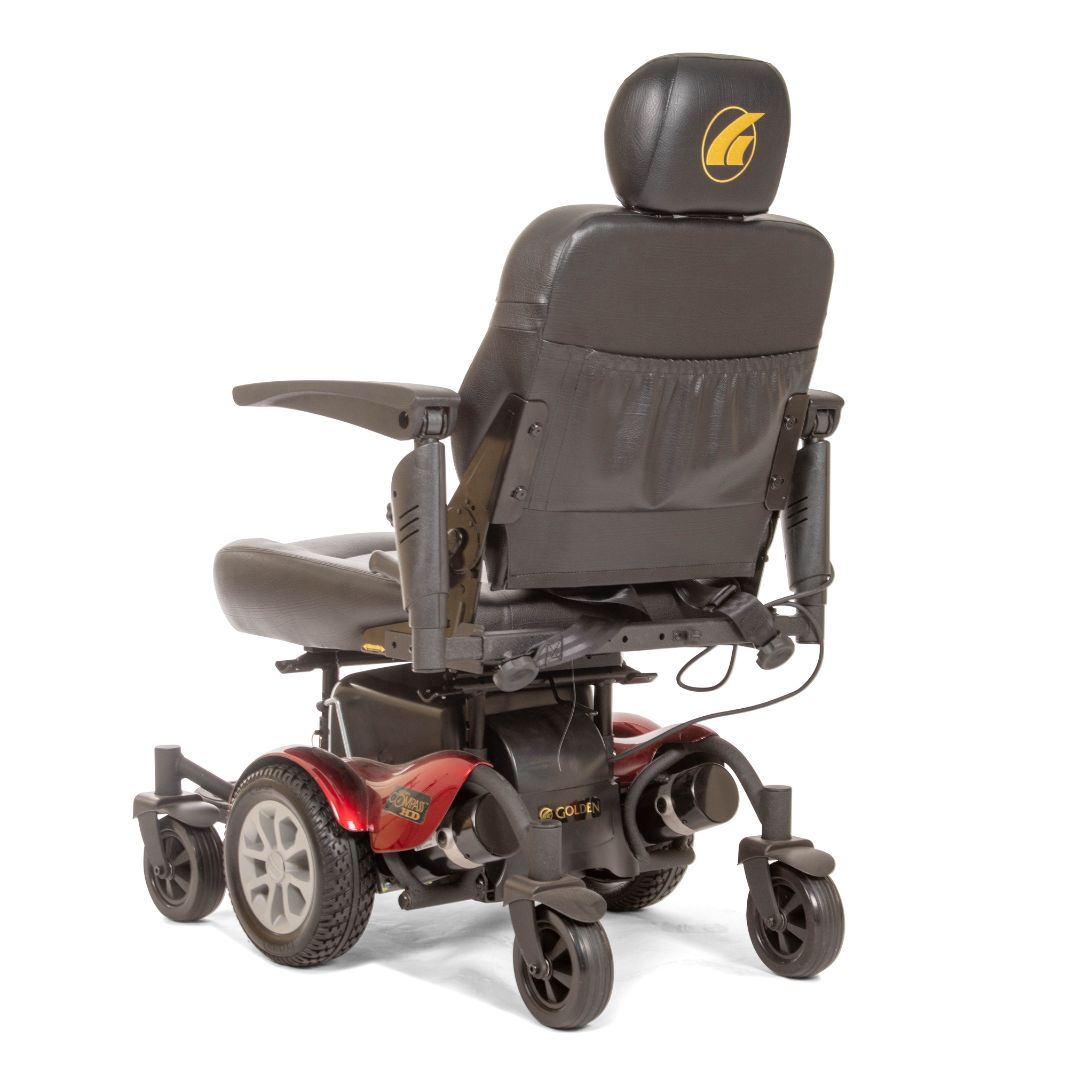

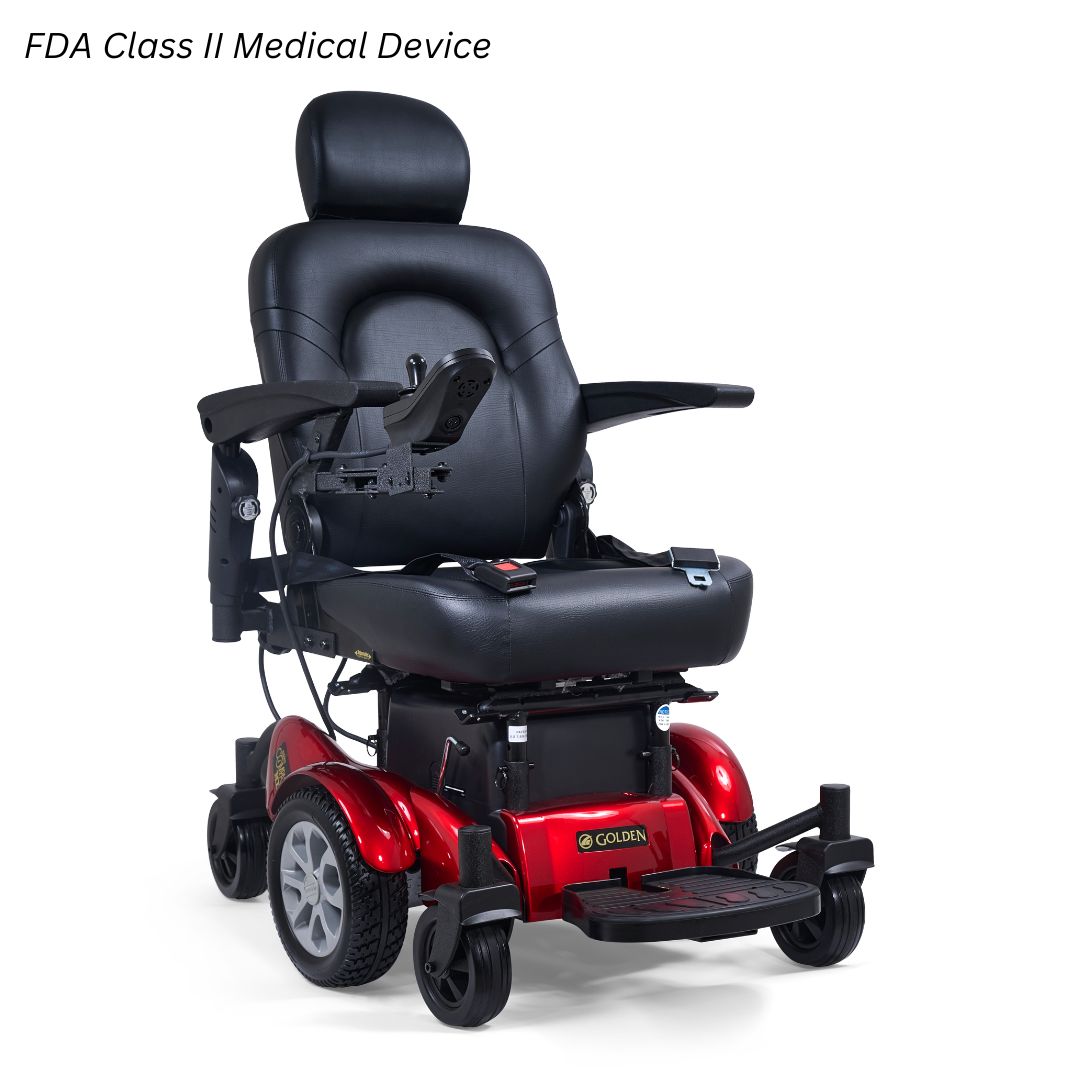

Compass™ HD

Model:
GP620
MSRP:
$6,599.00

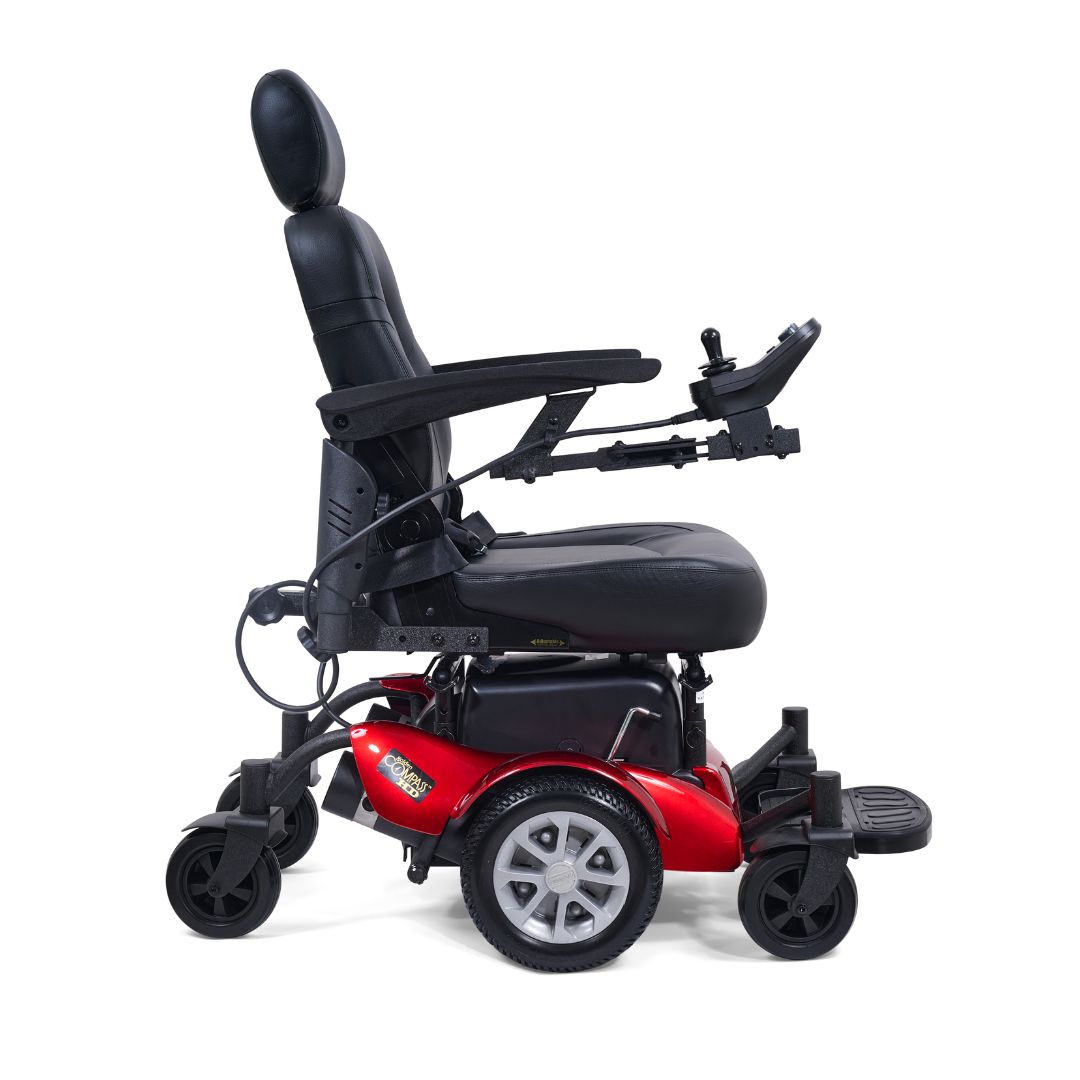

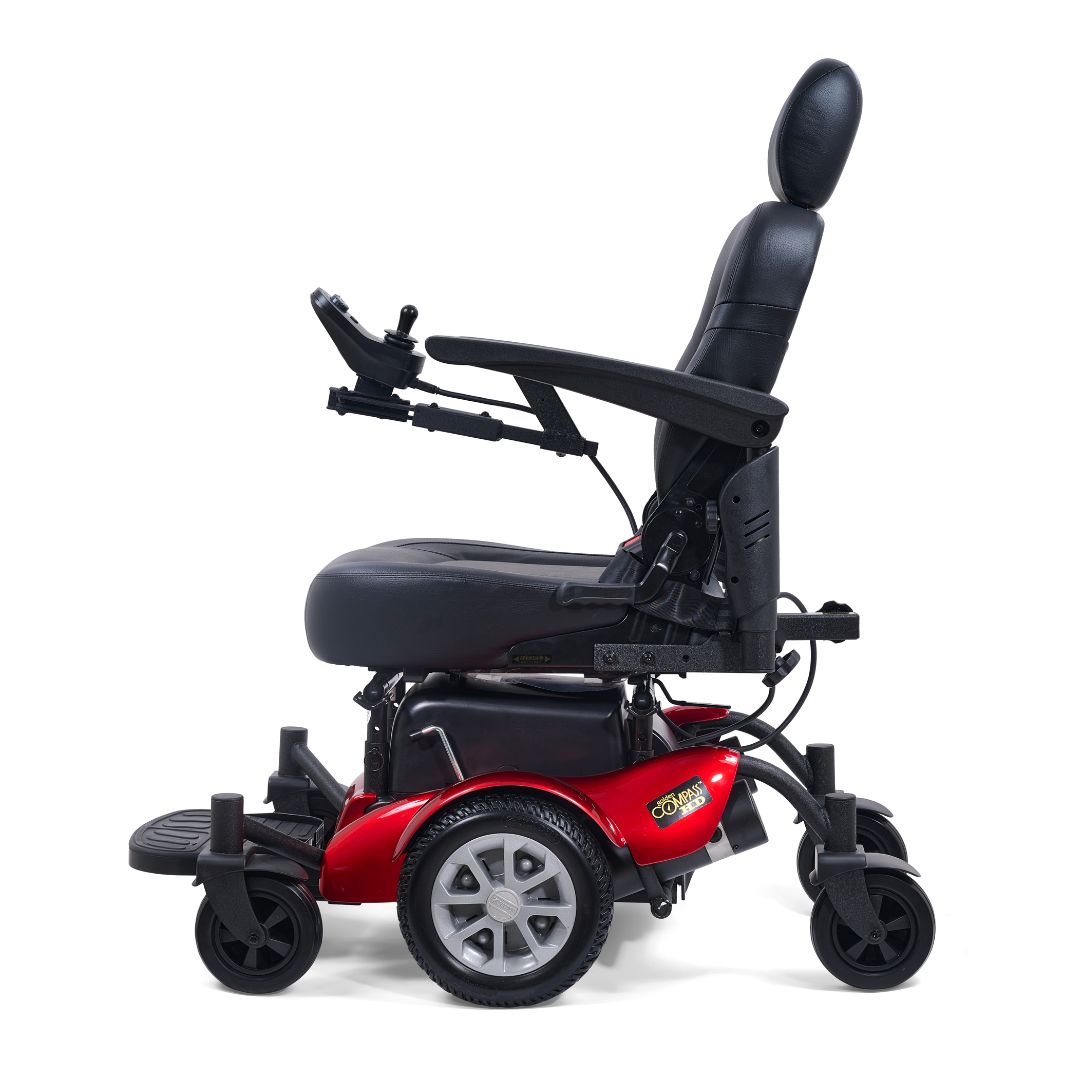

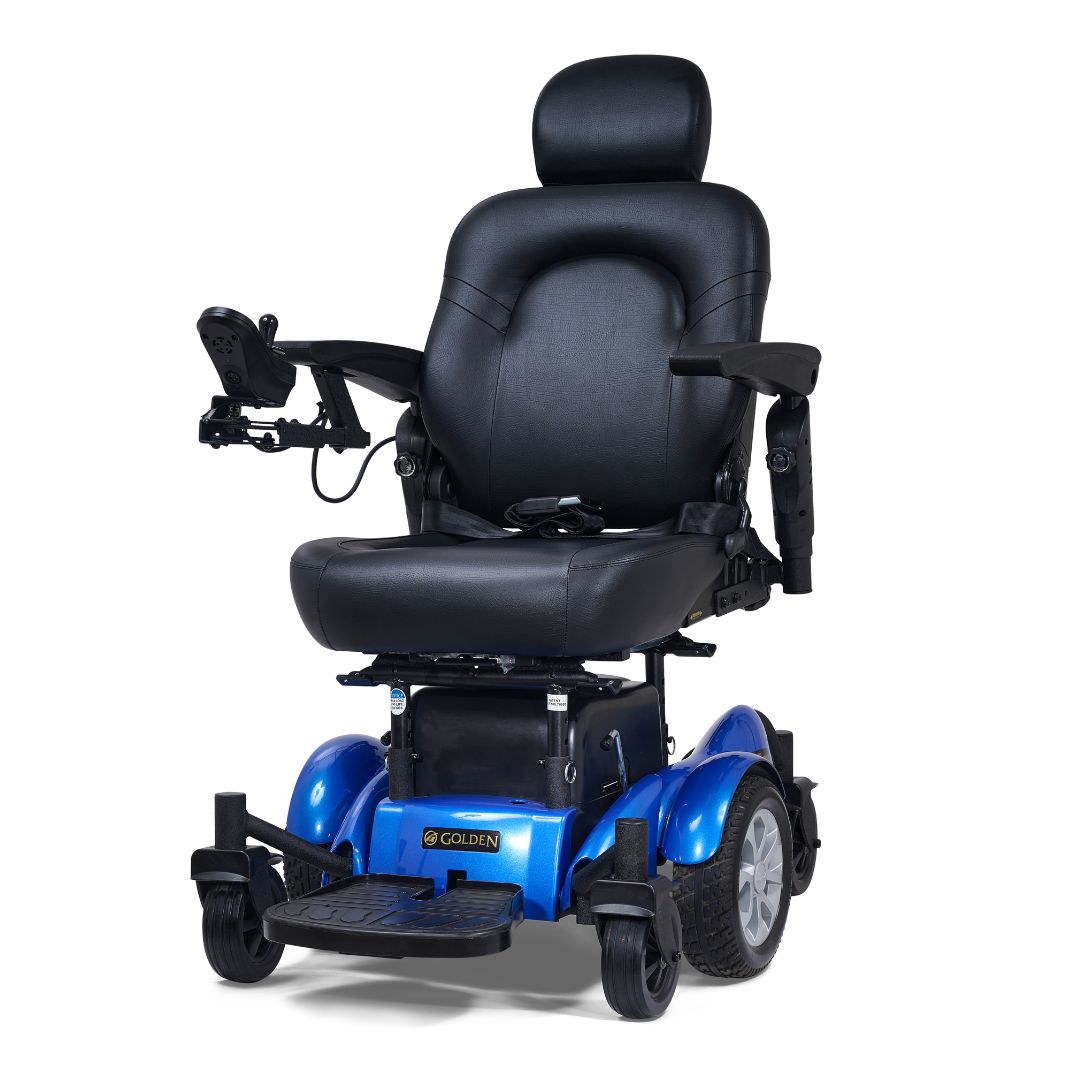

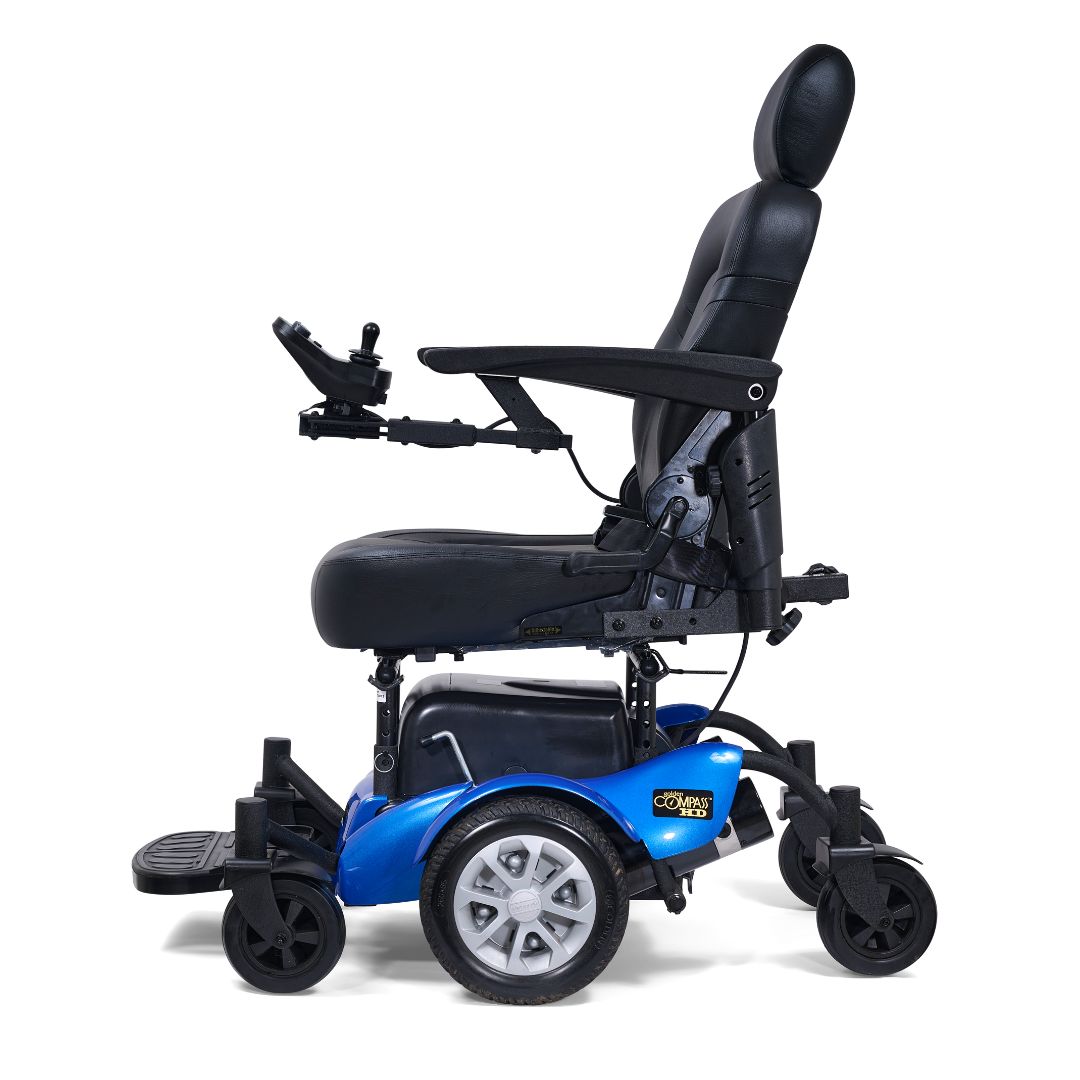

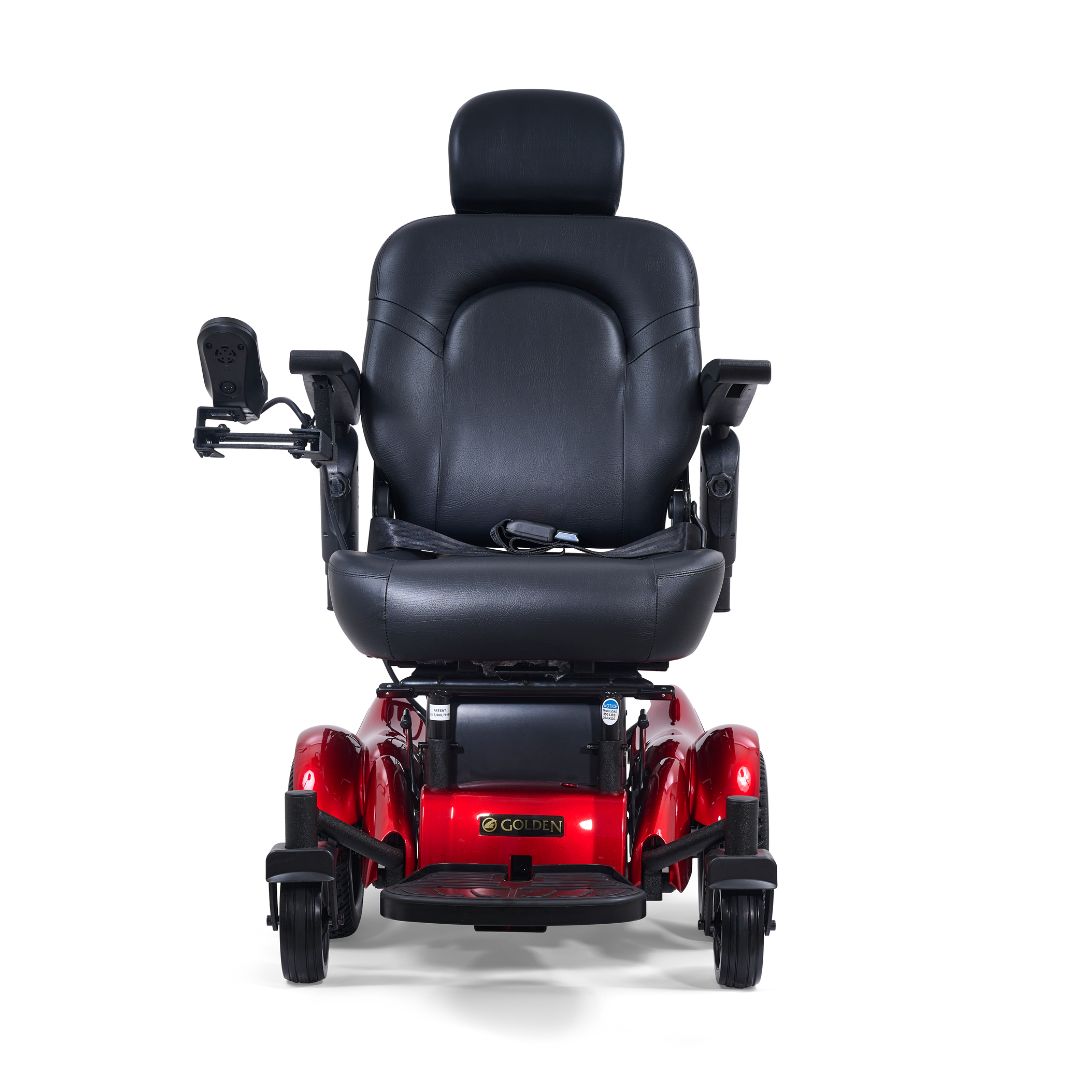

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius.  FDA Class II Medical Devices designed by Golden are intended to assist…

  • Weight Capacity: 450 lbs
  • Length: 40″
  • Width: 25″
  • Operating Range: 12 miles
  • Maximum Speed: 4 mph

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!

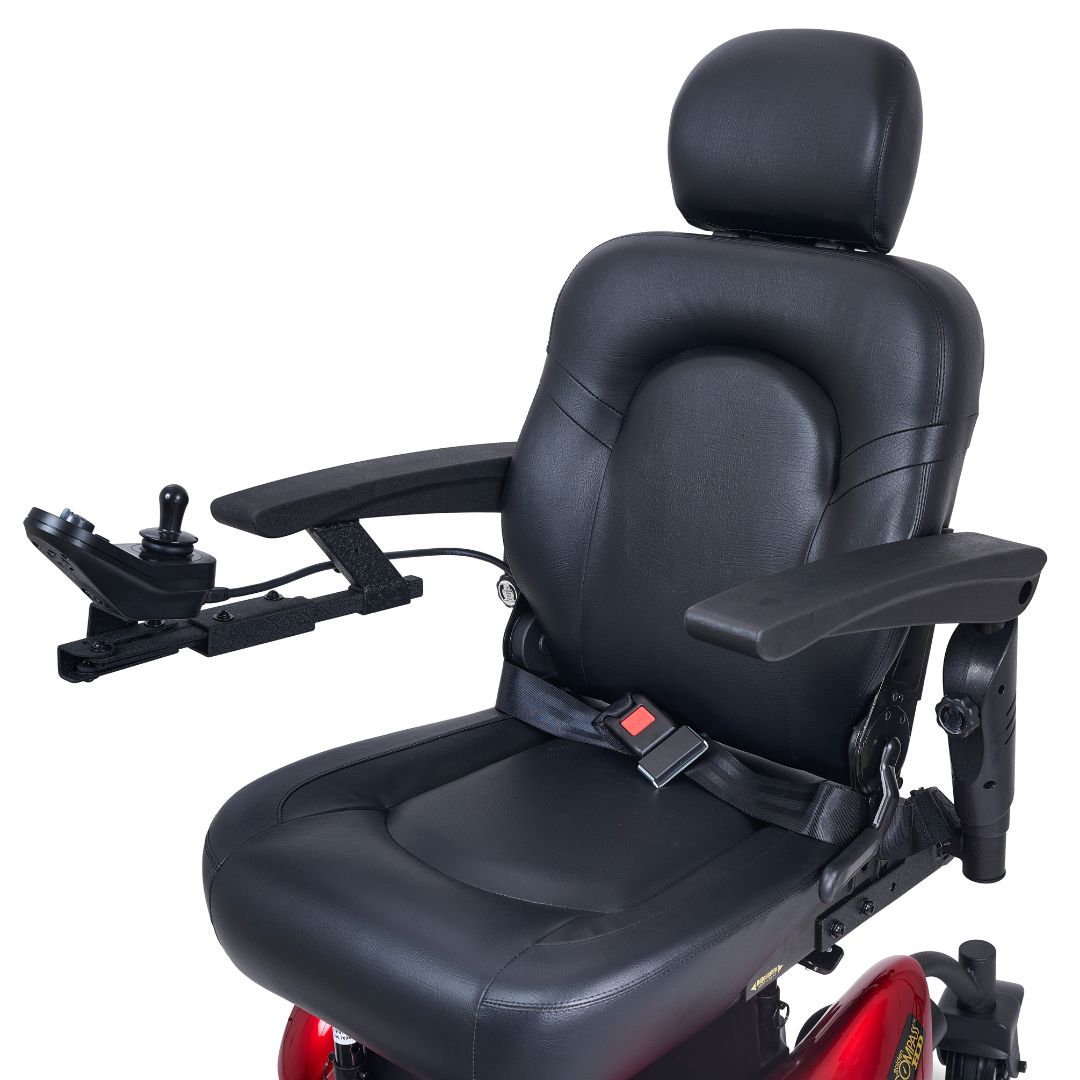

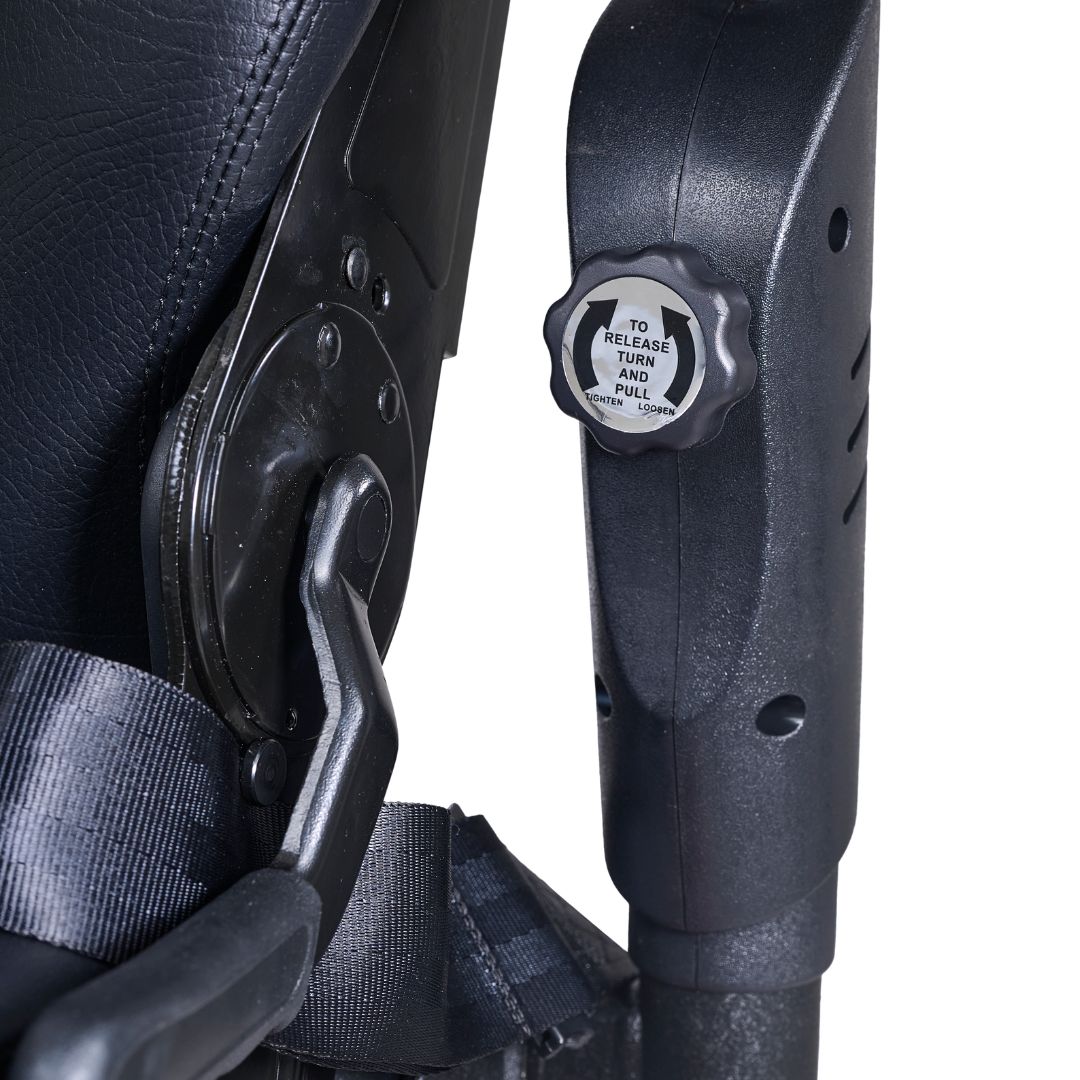

  • Standard captain’s seat with our exclusive fold-flat seat hinge design
  • Optional seating includes ProFlex Seat and van/pan seat

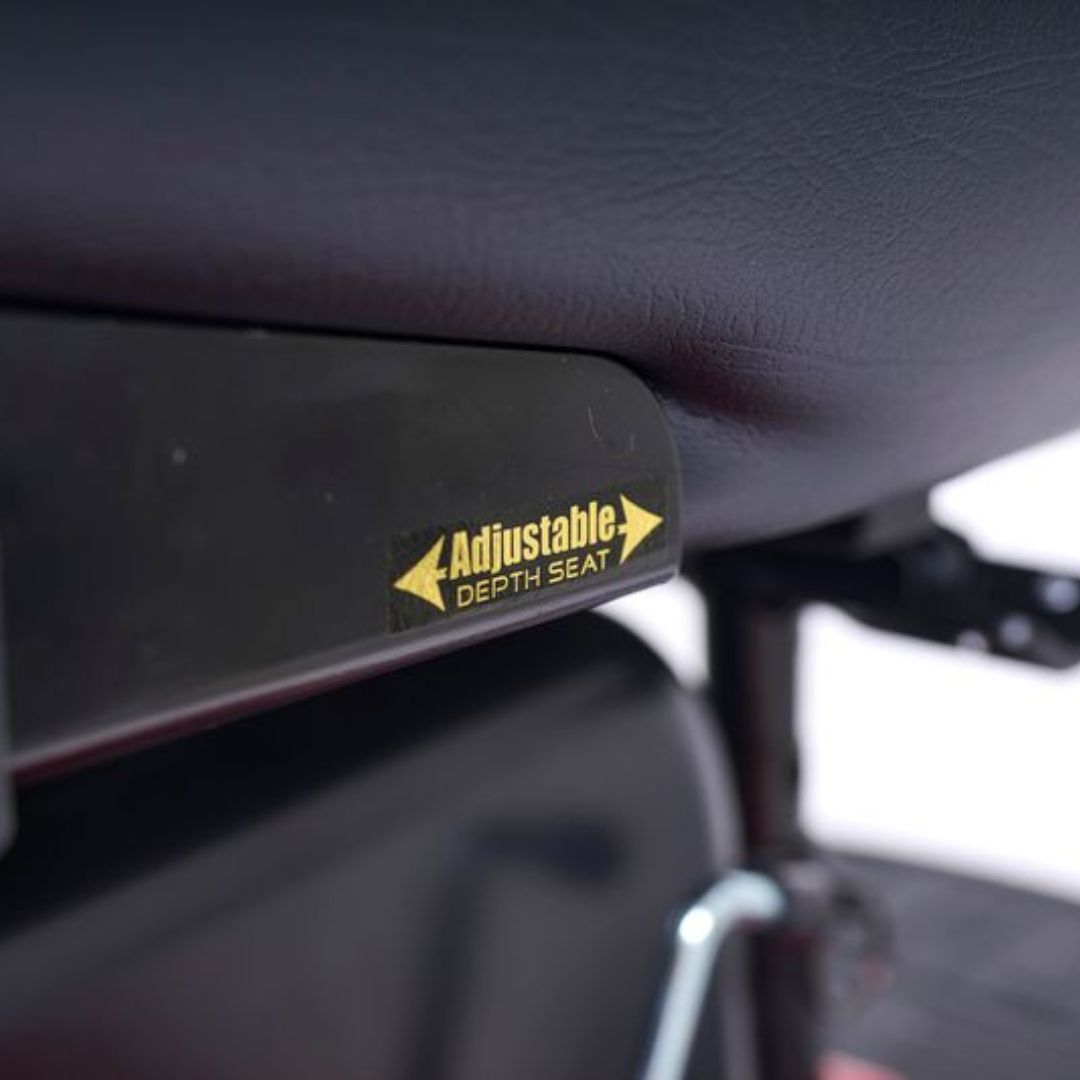

  • Exclusive slide seat mechanism for easy seat removal and attachment
  • 450 lb. weight capacity
  • Adjustable headrest and armrests

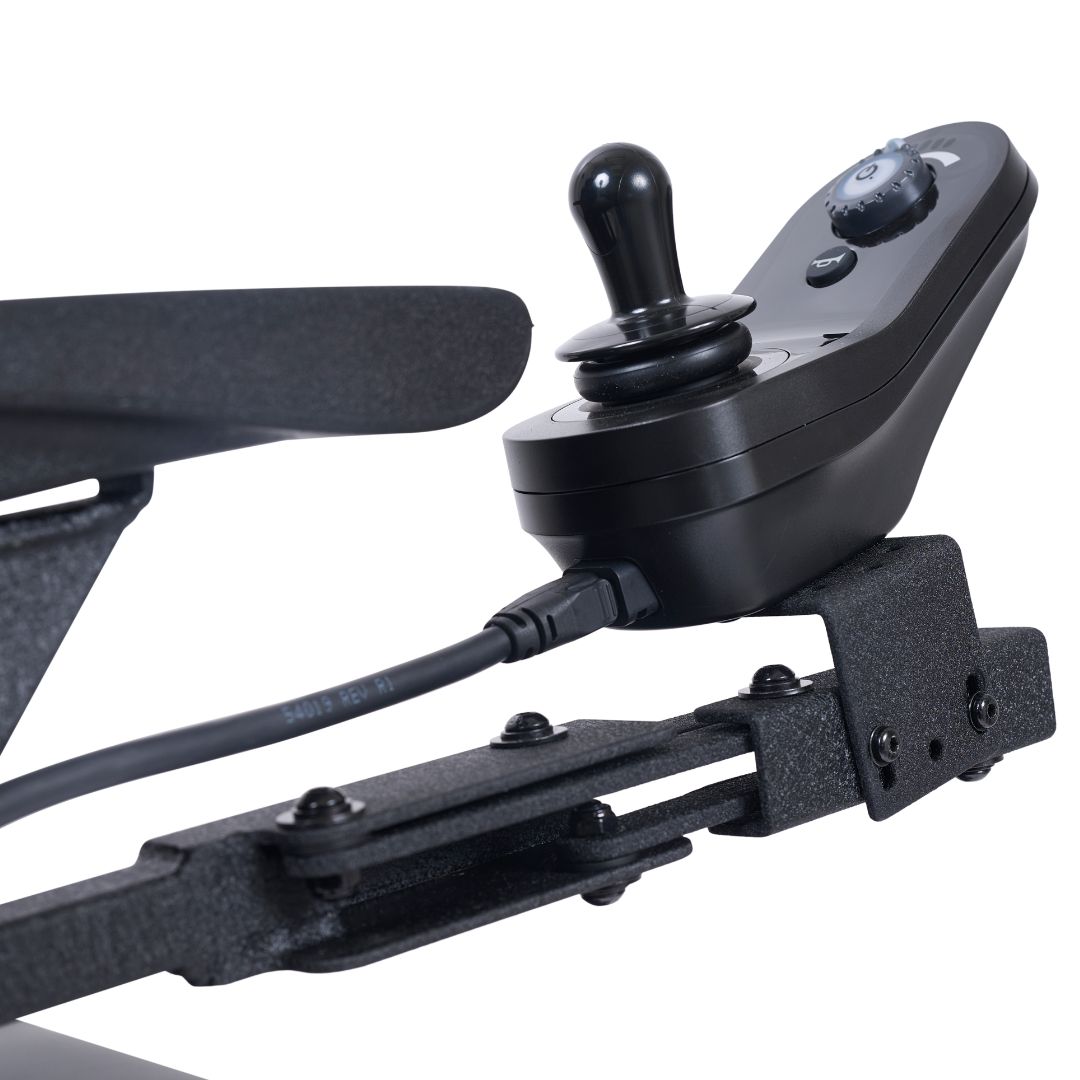

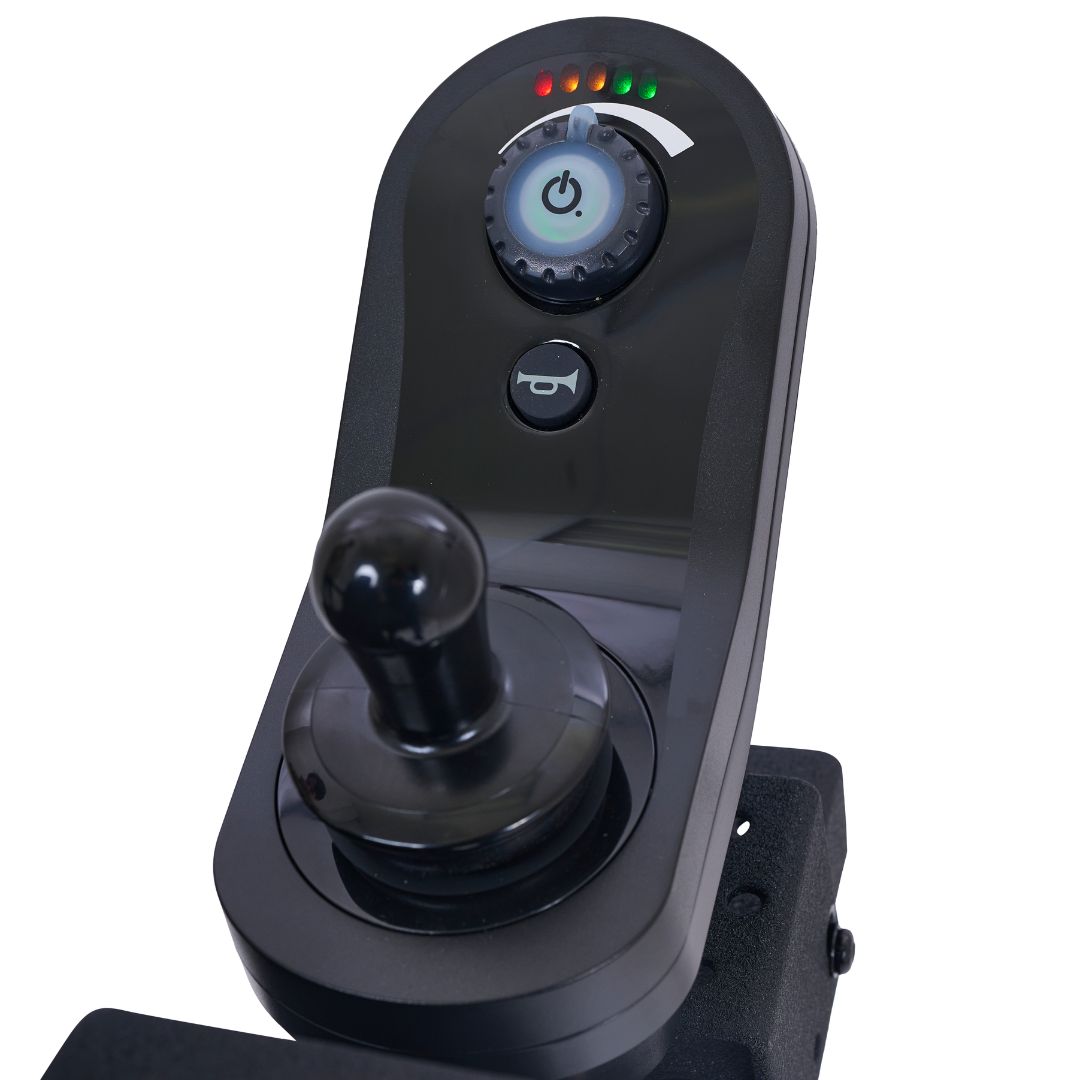

  • 75 amp peak Dynamic Shark controller standard
  • Off-board charger
  • Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
  • Uses 22NF batteries
  • Model Number: GP620
  • Designed exclusively for Golden, imported product
  • Medicare Code:

    K0825

  • User Weight Capacity:
  • Drive Wheels:

    Center

  • Maximum Speed:

    4 mph

  • Operating Range:

    12 miles

  • Ground Clearance:

    3.5"

  • Turning Radius:

    20"

  • Type Batteries:

    NF22

  • Standard Colors:

    Red, Blue

  • Freewheel Mode:

    Yes

  • Electronic Speed Control:

    Yes

  • Electro-Mechanical Brakes:

    Yes

  • Charger:

    Off Board

  • Controller:

    75 Amp

  • Length:

    40"

  • Width:

    25"

  • Height (ground to top of back of seat:

    38.25” – 42.75”

  • Height (ground to top of back of headrest):

    47"-53"

  • Ground to Top of Seat:

    21.25” – 24.25”

  • Number Seat Height Positions:

    5

  • Size of Increments:

    0.5"

  • Weight of Unit (assembled):

    226 lbs

  • Base Weight:

    101 lbs

  • Seat with Arms Weight:

    51 lbs

  • Batteries Weight:

    37 lbs ea

  • Tires (standard):

    Flat Free / Non Marking Solid

  • Center Tire:

    10"

  • Casters:

    6"

  • Standard Seat:

    Captain's Seat

  • Back Height (no headrest):

    19"

  • Back Height with Headrest:

    26.5"-30"

  • Seat Width x Depth:

    18"-24"x18"-20"

  • Seat Color:

    Black Vinyl

  • Optional Seat:

    Captain's Chair

  • Optional Seat 2 Back Height (no headrest):

    19"

  • Optional Seat 2 Back Height (with headrest):

    26.5"-30"

  • Optional Seat Width x Depth:

    18"-24"x18"-20"

  • Optional Seat Color:

    Black Vinyl

  • Footrest Height Adjustable:

    Yes

  • Footrest Angle Adjustable:

    Yes

  • Warranty Frame:

    5 Years

  • Warranty Drive Train:

    13 months

  • Warranty Electronics:

    13 months

  • Warranty Batteries:

    1 year
